VSTARCAM C7824WIP HD indoor IP Camera,720p

Product Details

Operation system : Embedded Linux OS

Online visitor : Support 4 visitors at the same time

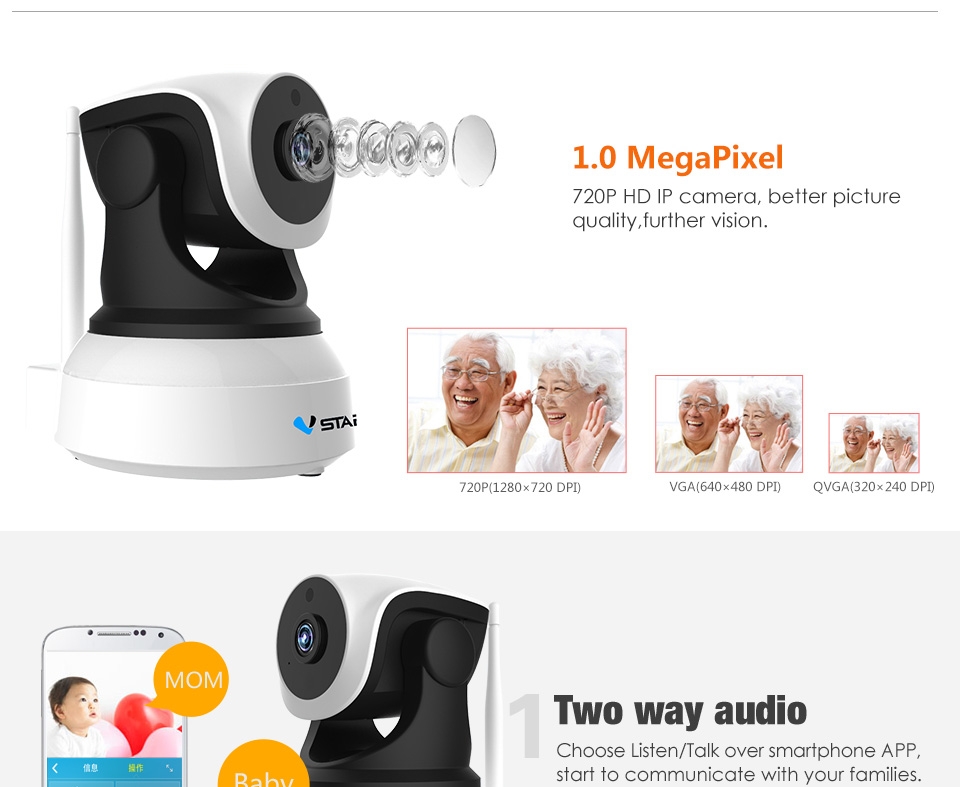

Image sensor : 1/4 inch 720p Progressive Scan CMOS

Minimum Illumination : 0.3～0.5Lux（Color mode）,0Lux（B&W mode）

Lens : 3.6mm@F2.5

View Angle : 96°（diagonal）

Night vision : Dual Filter,IR-Cut,6pcs 850nm Φ5mm IR LED，IR irradiation distance:5～10m

Encode format : H.264 main profile@level:4.0/Motion-JPEG/JPEG

Three Stream : Main Stream:720p(1280X720)@25fps ,Sub Stream:360p(640X360)@25fps ,Third

Stream :180p(320X180)@10fps

Bit Rate : 128～4096kbps

Maximum frame rate : 25fps

Image adjustment : Contrast、Brightness、Saturation、Hue

Input : Built-in -48 dB microphone

Output : Built-in speaker(8Ω1W)

Sampling frequency / width : 8KHz/16bit

Compression standard : ADPCM/32kbps

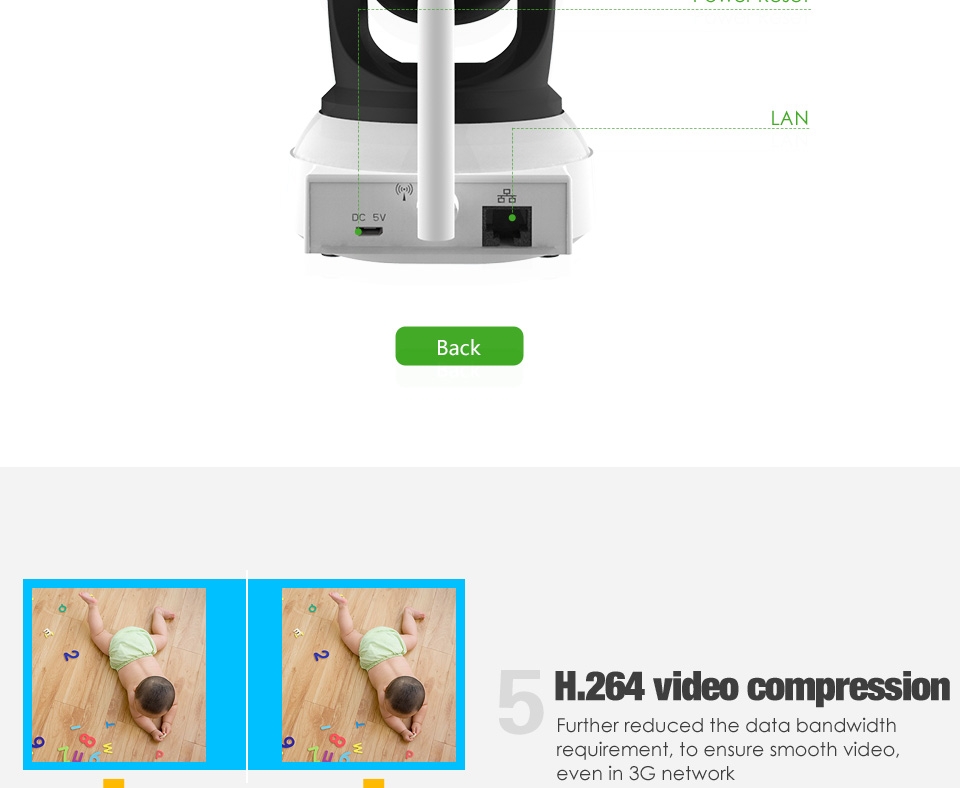

Ethernet : 10Base-T / 100Base-TX, RJ45 connector

Protocols : TCP/IP,HTTP,TCP,UDP,DHCP,DNS,NTP,RTSP,P2P etc

Wireless LAN : IEEE802.11b/g/n

Wireless LAN Frequency : 2.4~ 2.4835GHz

Wireless LAN security : 64/128-bit WEP/WPA-PSK /WPA2-PSK data encryption

Pan-tilt : Pan：349°,tilt：84°

Preset position : PC APP：support 16 positions, phone APP:support 5 positions

Socket : TF Push-push socket,Maximum support 128GB

Alarm Trigger : Motion detection

Rated voltage : DC 5V±5%

Power consumption : Related power:2.7W(IR on), Maximum power: 4.75W(Pan&Tilt on)

Operating condition : Temperature:-10～50℃,humidity:＜90%

Weight : Gross：547g g(Note: in kind prevail)

Package size : 208*154*137mm(L×W×H)
