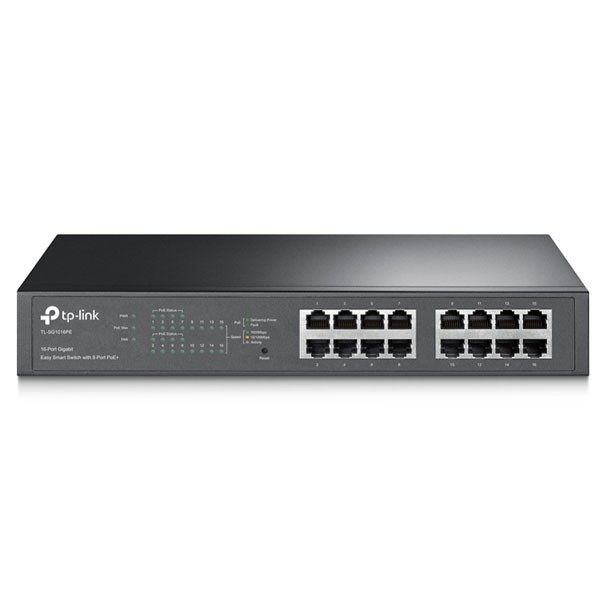

tp-link TL-SG1016PE 16-Port Gigabit Easy Smart Switch with 8-Port PoE+ (802.3 af/at), PoE Power Budget of 150 W,* up to 30 W per Port, Rack-Mountable Steel Case
อุปกรณ์ PoE สวิตซ์ TL-SG1016PE ขนาด 16 พอร์ตกิกะบิต RJ45 ความเร็ว 10/100/1000Mbps โดย 8 พอร์ต (1-8 Ports) เป็น PoE/PoE+ (มาตรฐาน IEEE 802.3af/at) จ่ายไฟรวม 150 วัตต์ สามารถบริหารจัดการได้ (Smart Switch) รองรับการทำ VLAN, IGMP Snooping, Static Link Aggregation, ตัวเครื่องเคสเป็นโลหะ สวยงามแข็งแรง รองรับติดตั้งแบบแขวนผนังและวางบนโต๊ะ และในตู้แร็ค หมาะสำหรับเชื่อมต่ออุปกรณ์เครือข่ายและจ่ายไฟเลี้ยงให้อุปกรณ์ PoE เช่น Wall AP, Ceiling AP และ IP Camera เป็นต้น
สถานะของสินค้า : สินค้าพร้อมส่ง
ราคาปกติ: 4,900 บาท
Special Price 4,450 บาท
แบรนด์ | TP-Link |
รุ่น | TL-SG1016PE |
ประเภทอุปกรณ์ | Gigabit PoE Switch |
คุณลักษณะเด่น | • 16× 10/100/1000Mbps RJ45 ports • Equipped with 8× PoE+ supported ports to transfer data and power over a single cable • With a total PoE power budget of 150 W,* up to 30 W per port • Works with IEEE 802.3af/at compliant devices • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto recovery • Simple network set-up on top of plug-and-play connectivity • Web-based user interface and management utility simplify configuration |
สวิตซ์ระดับ | Layer 2 |
มาตรฐาน | • Standard: 802.3 at compliant • PoE Ports: Port 1- Port 8 • PoE Power Budget: 150W Certification • CE,FCC |
พอร์ตเชื่อมต่อ | 16 10/100/1000Mbps RJ45 |
พอร์ต PoE Out | 8 พอร์ต (1-8 Ports) เป็น PoE/PoE+ (มาตรฐาน IEEE 802.3af/at) จ่ายไฟรวม 150 วัตต์ |
จ่ายไฟรวม PoE Budget | 150 W,* up to 30 W per Port |
MAC Address Table | 8K |
Switching Capacity | 32 Gbps |
ไฟแสดงสถานะ | Power, 1000Mbps, Link/Act |
Max Power Consumption | 124.4W(220V/50HZ) |
Power Supply | 100-240V, 50/60Hz |
ทำงานได้ที่อุณหภูมิ | 0°C~40°C (32°F~104°F) |
วัสดุ | Steel Case |
รองรับการติดตั้ง | Rack-Mount |
ขนาด | 11.6 * 7.1 * 1.7 in. (294* 180 * 44 mm), 13-inch Rack mount Steel Case, 1U Height |
สินค้ารับประกัน | ตลอดอายุการใช้งาน |
ราคาก่อนภาษี (Excluding VAT) | tp-link TL-SG1016PE ราคา 4,450 บาท *มี Technical Support ช่วยเหลือการตั้งค่าใช้งาน |
บริการ | • ติดตั้งอุปกรณ์เครือข่ายคอมพิวเตอร์ สวิตซ์ เร้าเตอร์ และแอคเซสพอยต์ • ติดตั้งสายนำสัญญาณระบบแลน สาย UTP • ติดตั้งสายนำสัญญาณไฟเบอร์ออฟติก Indoor / Outdoor Fiber Optic • ตรวจซ่อม แก้ไขระบบเครือข่ายคอมพิวเตอร์แบบสายและไร้สาย |
สเปคสินค้า
แบรนด์ | TP-Link |
---|---|
รุ่น | TL-SG1016PE |
ประเภทอุปกรณ์ | Gigabit PoE Switch |
คุณลักษณะเด่น | • 16× 10/100/1000Mbps RJ45 ports • Equipped with 8× PoE+ supported ports to transfer data and power over a single cable • With a total PoE power budget of 150 W,* up to 30 W per port • Works with IEEE 802.3af/at compliant devices • Automatically reboots your dropped or unresponsive PoE-powered devices with PoE Auto recovery • Simple network set-up on top of plug-and-play connectivity • Web-based user interface and management utility simplify configuration |
สวิตซ์ระดับ | Layer 2 |
มาตรฐาน | • Standard: 802.3 at compliant • PoE Ports: Port 1- Port 8 • PoE Power Budget: 150W Certification • CE,FCC |
มาตรฐานโปรโตคอล | ไม่ใช่ |
พอร์ตเชื่อมต่อ | 16 10/100/1000Mbps RJ45 |
พอร์ต PoE Out | 8 พอร์ต (1-8 Ports) เป็น PoE/PoE+ (มาตรฐาน IEEE 802.3af/at) จ่ายไฟรวม 150 วัตต์ |
จ่ายไฟ PoE ต่อพอร์ต | N/A |
จ่ายไฟรวม PoE Budget | 150 W,* up to 30 W per Port |
Link Aggregation | ไม่ใช่ |
Switch Fabric | ไม่ใช่ |
Transmit Rate | ไม่ใช่ |
Jumbo Frames | ไม่ใช่ |
MAC Address Table | 8K |
ความเร็วรับส่งข้อมูลเข้าออก Bandwidth | ไม่ใช่ |
Switching Capacity | 32 Gbps |
Forwarding Rate | ไม่ใช่ |
Layer 3 Static Routing | ไม่ใช่ |
VLAN | ไม่ใช่ |
ไฟแสดงสถานะ | Power, 1000Mbps, Link/Act |
Max Power Consumption | 124.4W(220V/50HZ) |
Power Supply | 100-240V, 50/60Hz |
ทำงานได้ที่อุณหภูมิ | 0°C~40°C (32°F~104°F) |
วัสดุ | Steel Case |
รองรับการติดตั้ง | Rack-Mount |
ขนาด | 11.6 * 7.1 * 1.7 in. (294* 180 * 44 mm), 13-inch Rack mount Steel Case, 1U Height |
น้ำหนัก (กิโลกรัม) | ไม่ใช่ |
สินค้ารับประกัน | ตลอดอายุการใช้งาน |
ราคาก่อนภาษี (Excluding VAT) | tp-link TL-SG1016PE ราคา 4,450 บาท *มี Technical Support ช่วยเหลือการตั้งค่าใช้งาน |
บริการ | • ติดตั้งอุปกรณ์เครือข่ายคอมพิวเตอร์ สวิตซ์ เร้าเตอร์ และแอคเซสพอยต์ • ติดตั้งสายนำสัญญาณระบบแลน สาย UTP • ติดตั้งสายนำสัญญาณไฟเบอร์ออฟติก Indoor / Outdoor Fiber Optic • ตรวจซ่อม แก้ไขระบบเครือข่ายคอมพิวเตอร์แบบสายและไร้สาย |
