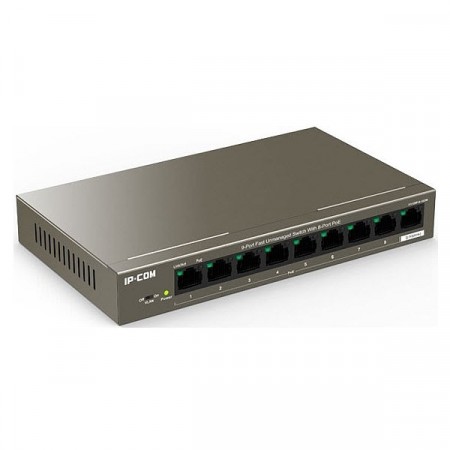

IP-COM F1109P-8-102W Unmanaged PoE Switch 9-Ports 10/100Mbps Desktop Switch with 8-PoE Ports(802.3 af/at) (Power Budget:99W) with 250M Trans. + 6KV Lightening Protection
PoE Switch รุ่น F1109P-8-102W ขนาด 9 พอร์ตแลน 10/100 Mbps รองรับการจ่ายไฟฟ้าผ่านสายแลน รองรับ POE มาตรฐาน 802.3af/at ได้ 8 พอร์ต จ่ายไฟได้สูงสุด 30W/พอร์ต จ่ายไฟได้สูงสุดรวม 120 watts เหมาะสำหรับติดกล้อง IP Camera/Access Point 8 ตัว ยังเหลือ 1 ช่องไว้ต่อ Router สามารถจัดวางบนโต๊ะ ตู้แร็ค หรือติดยึดกับพื้นผิว ผลิตจากวัสดุซึ่งเป็นโลหะทนทาน แข็งแรง
Brand:
IP-COM
สถานะของสินค้า : สินค้าพร้อมส่ง
ราคาปกติ: 2,100 บาท
Special Price 1,900 บาท
แบรนด์ | IP-COM |
รุ่น | F1109P-8-102W |
ประเภทอุปกรณ์ | Unmanaged Switch |
คุณลักษณะเด่น | • Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at • Store & forward, share memory, non-blocking architecture • Supports MAC address self-learning and auto MDI/MDIX • Provide 9 10/100Mbps auto-negotiation ports with 8-port PoE • Ports 1-8: IEEE 802.3af/at PoE ports • Supports full-deplux 802.3x flow control and half-duplux backpressure flow control • Supports 2K MAC address list, MAC address learning and auto-ageing • Supports port Inductive Lightning Protection up to 6KV • Fanless design • maximum power output of the switch: 92W • Hardware DIP switch for selection among the Standard, VLAN modes • Desktop Design |
มาตรฐาน | IEEE 802.3/IEEE 802.3u/IEEE 802.3x IEEE 802.3af/IEEE 802.3at |
พอร์ตเชื่อมต่อ | 8 10/100Base-T ports(Data/Power) 1 10/100Base-T ports(Data) |
จ่ายไฟรวม PoE Budget | In full configuration: 102W PoE Max Power Supply: 92W |
Switching Capacity | 1.8 Gbps |
ขนาด MAC Address Table | 2K |
ไฟแสดงสถานะ | 9*Link/Act per device 1*Power per device |
รับไฟ Input Voltage | AC: 100-240V~50/60Hz |
ทำงานได้ที่อุณหภูมิ | Operating : 0℃~40℃ (32℉~104℉) Storage : -40℃~70℃ (-40℉~158℉) |
ขนาด | 177.5*104*26mm |
สินค้ารับประกัน | 3 ปี |
ราคาก่อนภาษี (Excluding VAT) | IP-COM F1109P-8-102W ราคา 1,900 บาท |
บริการ | • ติดตั้งอุปกรณ์เครือข่ายคอมพิวเตอร์ สวิตซ์ เร้าเตอร์ และแอคเซสพอยต์ • ติดตั้งสายนำสัญญาณระบบแลน สาย UTP CAT 5E CAT 6 และ CAT 7 • ติดตั้งสายนำสัญญาณไฟเบอร์ออฟติก Indoor / Outdoor Fiber Optic • ตรวจซ่อม แก้ไขระบบเครือข่ายคอมพิวเตอร์แบบสายและไร้สาย |
สเปคสินค้า
แบรนด์ | IP-COM |
---|---|
รุ่น | F1109P-8-102W |
ประเภทอุปกรณ์ | Unmanaged Switch |
คุณลักษณะเด่น | • Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3af/at • Store & forward, share memory, non-blocking architecture • Supports MAC address self-learning and auto MDI/MDIX • Provide 9 10/100Mbps auto-negotiation ports with 8-port PoE • Ports 1-8: IEEE 802.3af/at PoE ports • Supports full-deplux 802.3x flow control and half-duplux backpressure flow control • Supports 2K MAC address list, MAC address learning and auto-ageing • Supports port Inductive Lightning Protection up to 6KV • Fanless design • maximum power output of the switch: 92W • Hardware DIP switch for selection among the Standard, VLAN modes • Desktop Design |
มาตรฐาน | IEEE 802.3/IEEE 802.3u/IEEE 802.3x IEEE 802.3af/IEEE 802.3at |
พอร์ตเชื่อมต่อ | 8 10/100Base-T ports(Data/Power) 1 10/100Base-T ports(Data) |
บริหารจัดการ | ไม่ใช่ |
จ่ายไฟ PoE ต่อพอร์ต | ไม่ใช่ |
จ่ายไฟรวม PoE Budget | In full configuration: 102W PoE Max Power Supply: 92W |
ควบคุม EWS AP | ไม่ใช่ |
โปรเซสเซอร์ | ไม่ใช่ |
หน่วยความจำ | ไม่ใช่ |
ขนาดฮาร์ดดิสก์ | ไม่ใช่ |
Switching Capacity | 1.8 Gbps |
Forwarding Mode | ไม่ใช่ |
ขนาด MAC Address Table | 2K |
Packet Buffer Memory | ไม่ใช่ |
ไฟแสดงสถานะ | 9*Link/Act per device 1*Power per device |
รับไฟ Input Voltage | AC: 100-240V~50/60Hz |
ใช้ไฟ Full Load Power | ไม่ใช่ |
ทำงานได้ที่อุณหภูมิ | Operating : 0℃~40℃ (32℉~104℉) Storage : -40℃~70℃ (-40℉~158℉) |
ขนาด | 177.5*104*26mm |
น้ำหนัก (กิโลกรัม) | ไม่ใช่ |
สินค้ารับประกัน | 3 ปี |
ราคาก่อนภาษี (Excluding VAT) | IP-COM F1109P-8-102W ราคา 1,900 บาท |
บริการ | • ติดตั้งอุปกรณ์เครือข่ายคอมพิวเตอร์ สวิตซ์ เร้าเตอร์ และแอคเซสพอยต์ • ติดตั้งสายนำสัญญาณระบบแลน สาย UTP CAT 5E CAT 6 และ CAT 7 • ติดตั้งสายนำสัญญาณไฟเบอร์ออฟติก Indoor / Outdoor Fiber Optic • ตรวจซ่อม แก้ไขระบบเครือข่ายคอมพิวเตอร์แบบสายและไร้สาย |
